Tucumcari J Repeater
Tucumcari is home to a former repeater on the Fourth Transcontinental Telephone Line, which runs from Albuquerque to Amarillo in this area. Some sections of original poles from the open wire line are standing to the west. According to route maps, there was also a K-carrier “branch” that paralleled the J-carrier, starting here and going East until Amarillo, with a “junction” between the J and K carrier at Adrian, TX. I'm not sure why, perhaps for reliability given the windstorms this area is prone to. The K-carrier line required give repeaters within the single J-carrier span.
| Built | 1937 |
|---|---|
| Builder | AT&T |
| Fate | Reused, non-telecom |
This telephone linen is discussed in BSTJ Vol. 18 (1939), “Transcontinental Telephone Lines.” It is also depicted on the 1941 long lines map, which provides some detail on the parallel K-carrier route.
operating instructions
Various functions are available as part of the map.
mouse/touch operation
- moving by grabbing the map with a mouse-click you can move the map around
- overview map using the < button in the bottom right of the map you can expand an overview map
- zooming in and out using the + and - buttons in the top left of the map you can obtain more or less detail in the map
- switching themes or maps clicking on the ≡ icon on the right-hand side of the map you can view and select available maps and themes
- retrieving information the map may contain elements that contain more information, by clicking these a popup will show this information
- fullscreen display using the ⛶ button the map can be maximized to fullscreen display, use the ▢ button to return to page display.
keyboard operation
Keyboard operation becomes available after activating the map using the tab key (the map will show a focus indicator ring).
- moving using the arrow keys you can move the map
- overview map using the + button in the bottom right of the map you can expand an overview map
- zooming in and out using the + and - buttons in the top left of the map or by using the + and - keys you can obtain more or less detail in the map
- switching themes or maps clicking on the ≡ icon on the right-hand side of the map you can view and select available maps and themes
- retrieving information the map may contain elements that contain more information, using the i key you can activate a cursor that may be moved using the arrow keys, pressing the enter will execute an information retrieval. press the i or the escape key to return to navigation mode
- fullscreen display using the ⛶ button the map can be maximized to fullscreen display, use the ▢ button to return to page display.
It's possible that some of the functions or buttons describe above have been disabled by the page author or the administrator
| id | symbol | latitude | longitude | description |
|---|---|---|---|---|
| 1 |  |
35.146219º | -103.725451º | Site Location |
Routes
| Destination | Direction | Carrier |
|---|---|---|
| Santa Rosa (JE) | West | J |
| Amarillo | East | J, K |
Construction

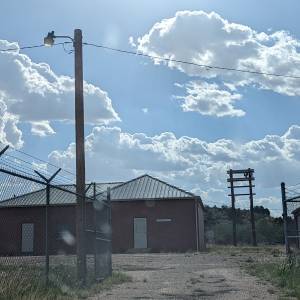

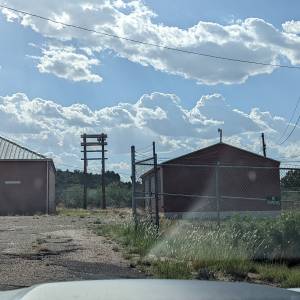

The repeater is a sturdy brick building with a standing H-frame nearby. A garage building standing nearby appears to be fairly old, although not quite original.
